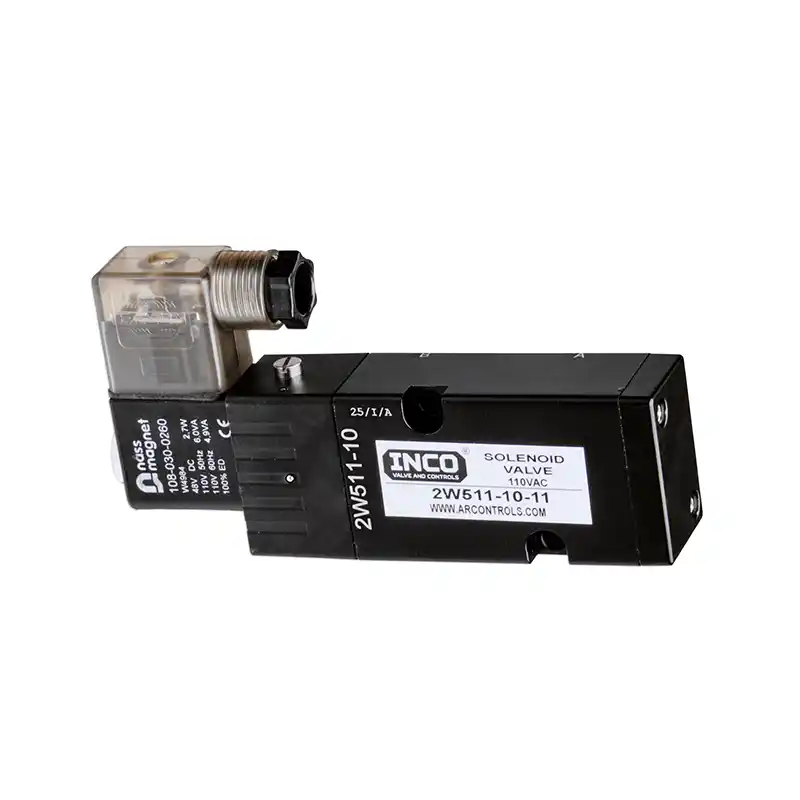

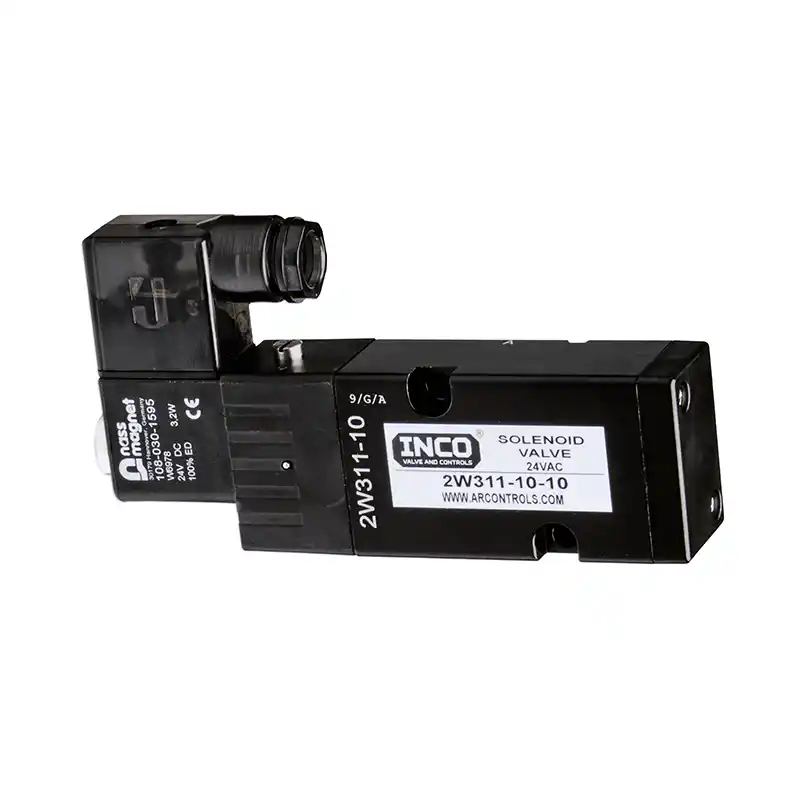

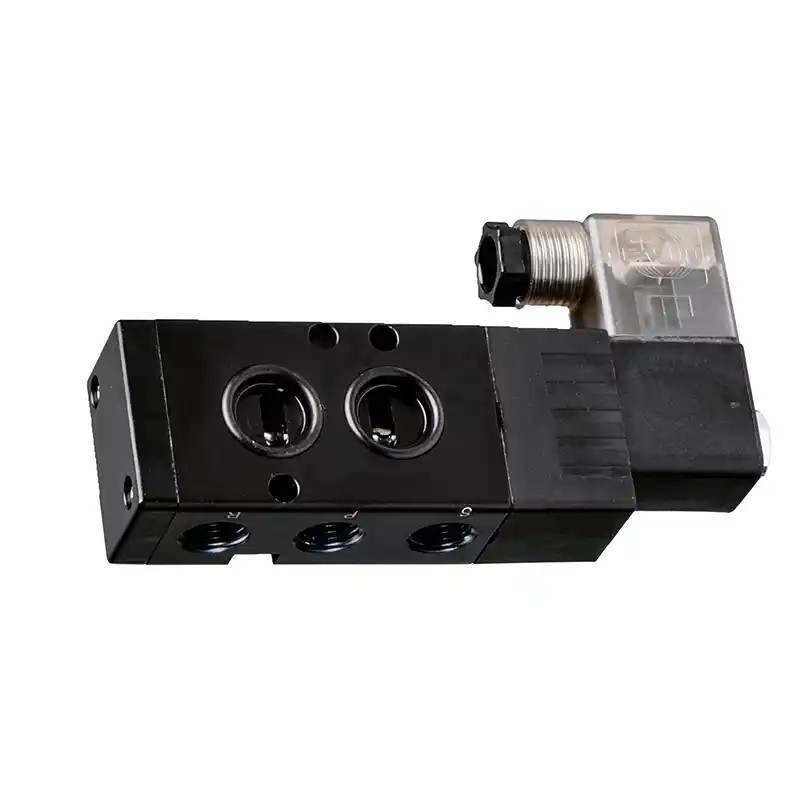

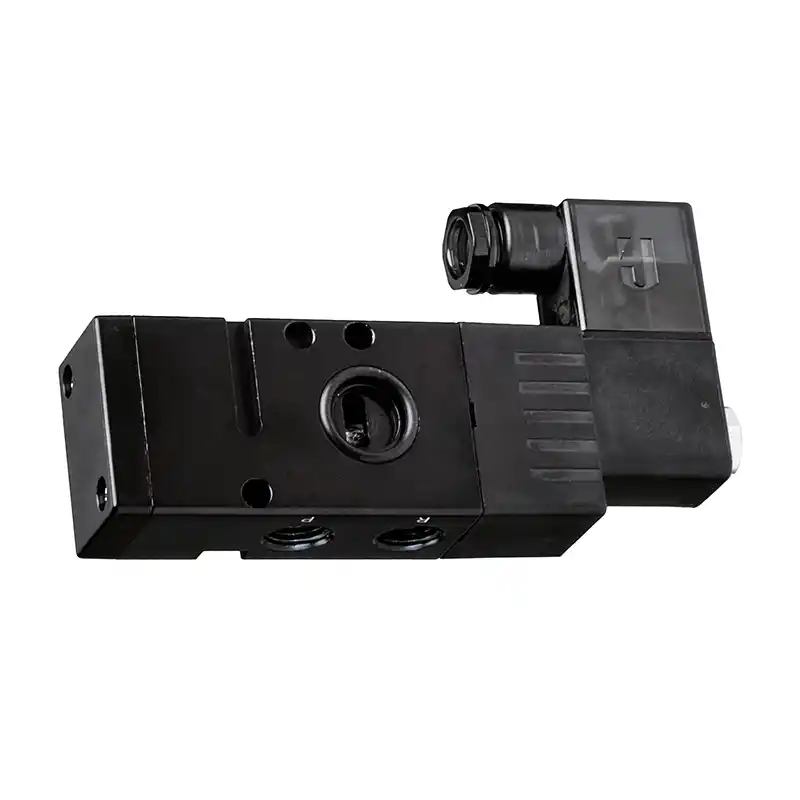

INCO Solenoid Valves

INCO® Solenoid Valves are designed for reliable pneumatic valve automation across a wide range of industrial applications. Available in standalone and NAMUR-mounted configurations, with 3/2 and 5/2-way options, they can be configured to suit specific customer requirements, operating environments and valve automation systems.

Description

The ASCDA speed controller is designed to control the opening and closing speeds of double acting pneumatic actuators. The ASCSR speed controller is designed to control the opening and closing speeds of spring return pneumatic actuators. It can be mounted directly on to the pneumatic actuator and can be used in conjunction with a Namur solenoid valve.

Specification

  • Housing material: Anodized Aluminium / Brass
  • Seal Material: Buna-N
  • Connection: 24 x 32 Namur
  • Working type: 5/2 (Double acting)
  • Working medium: 40 µm filtered and dried air
  • Maximum orifice of flux: ø3.74mm
  • Maximum flow coefficient: 740 l/min at 5 bar
  • Working Temperature: -20° – 60°
  • Working Pressure: 1.5 – 10 bar
