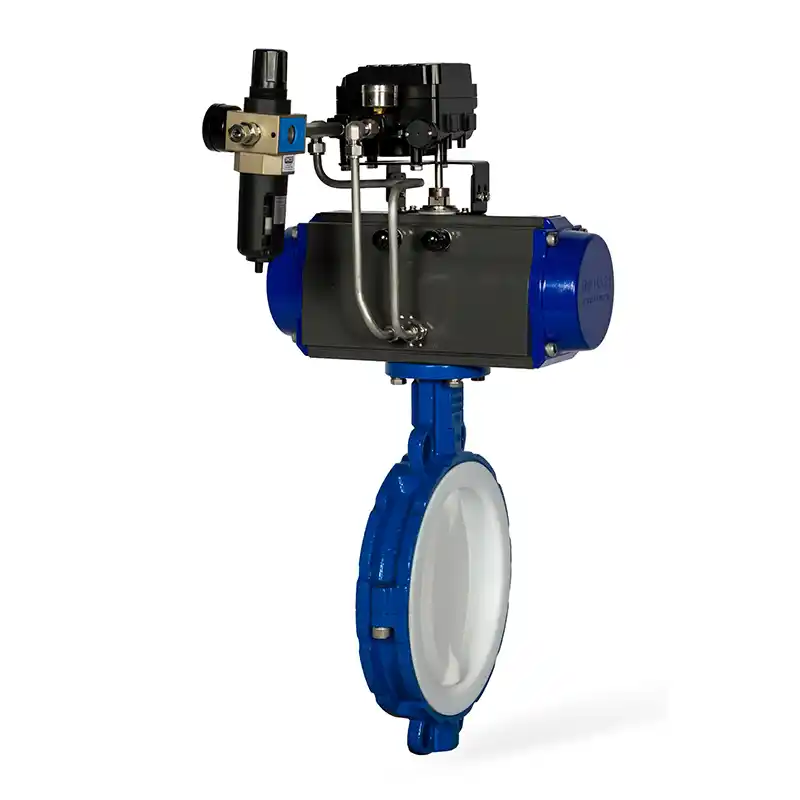

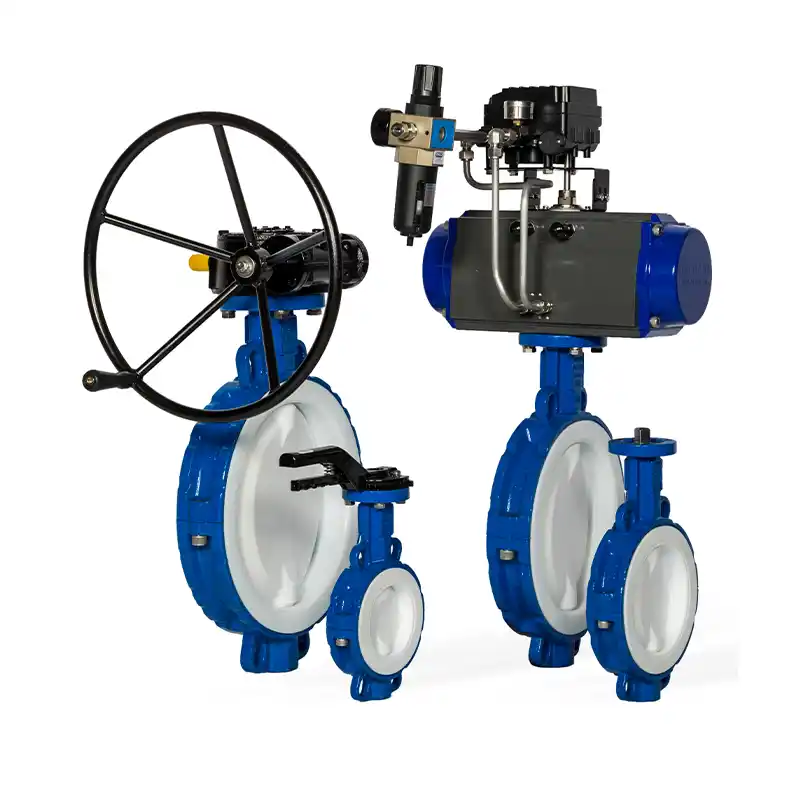

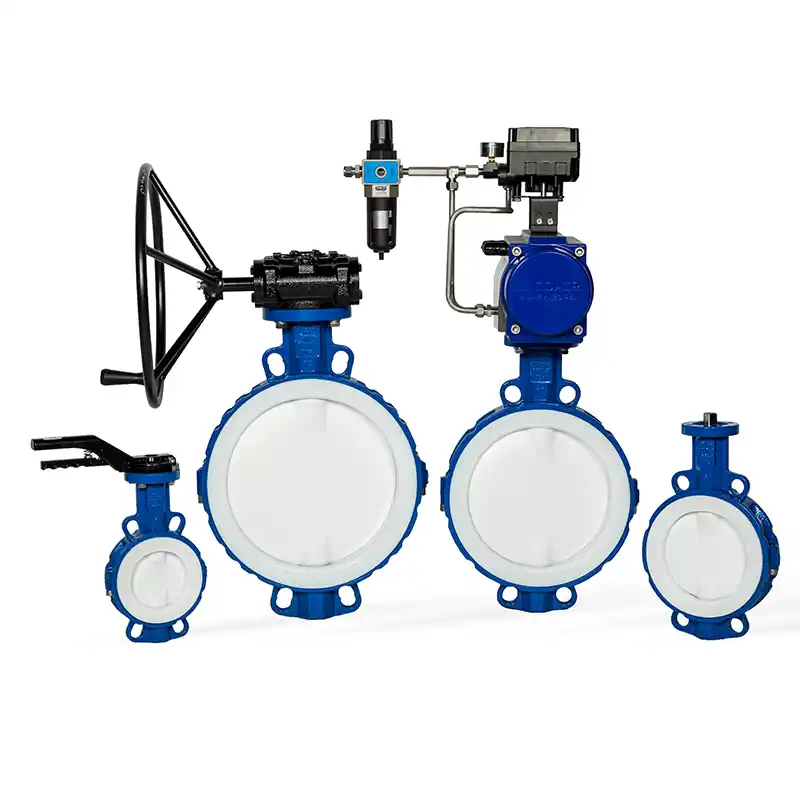

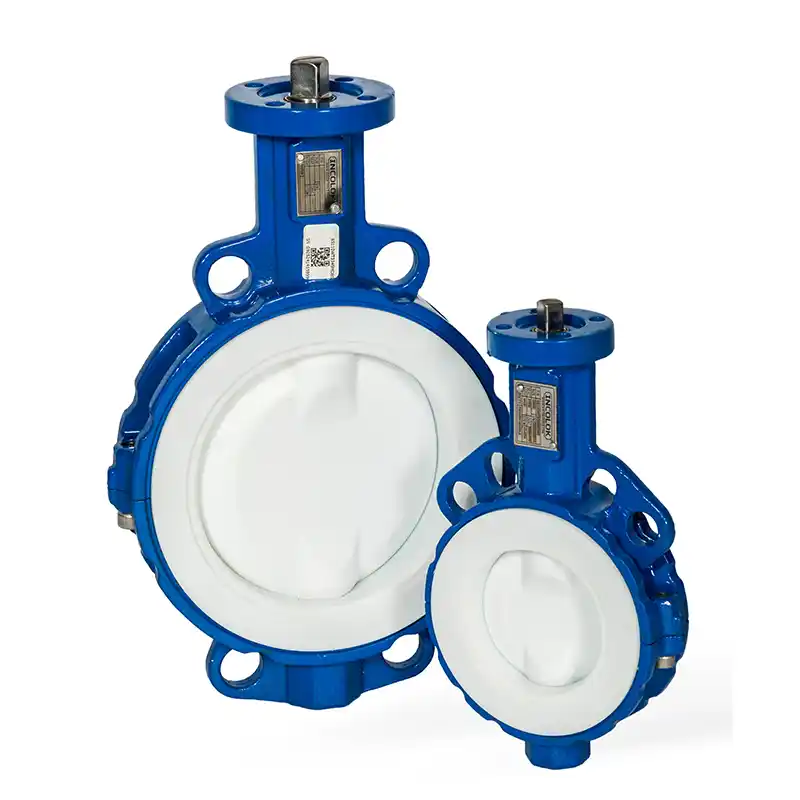

INCOLOK® S110 PTFE Lined Butterfly Valves provide reliable bi-directional, bubble-tight shutoff for demanding corrosive applications. Their unique continuous compression sealing system delivers a self-compensating, leak-tight seal under challenging conditions, including high-temperature vacuum service. The blow-out-proof PTFE-encapsulated stem-disc assembly provides reliable performance through thermal cycling across sizes from DN40 to DN600.
The Incolok Series 110 is a robust PTFE-lined butterfly valve built for demanding chemical and corrosive media applications. Designed to meet strict chemical-industry requirements, the S110 delivers reliable, high-performance operation. Its advanced PTFE-lined construction ensures tight shutoff, excellent flow capacity, and an extended service life, making it well-suited for the challenging conditions commonly found in chemical processing environments.
Maximum Operating Pressure:
1.000 psig (69 bar) @ 100℉ (38℃) with PTFE Seat
3.000 psig (207 bar) @ 100℉ (38℃) with PEEK Seat
Operating Temperature Range:
32℉ (0℃) to 450℉ (232℃)
