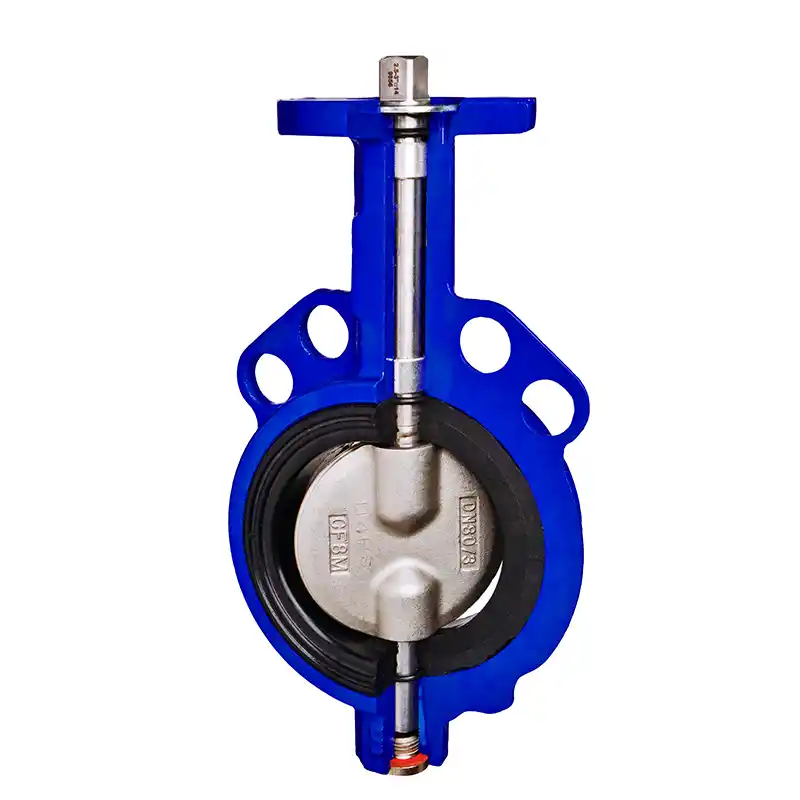

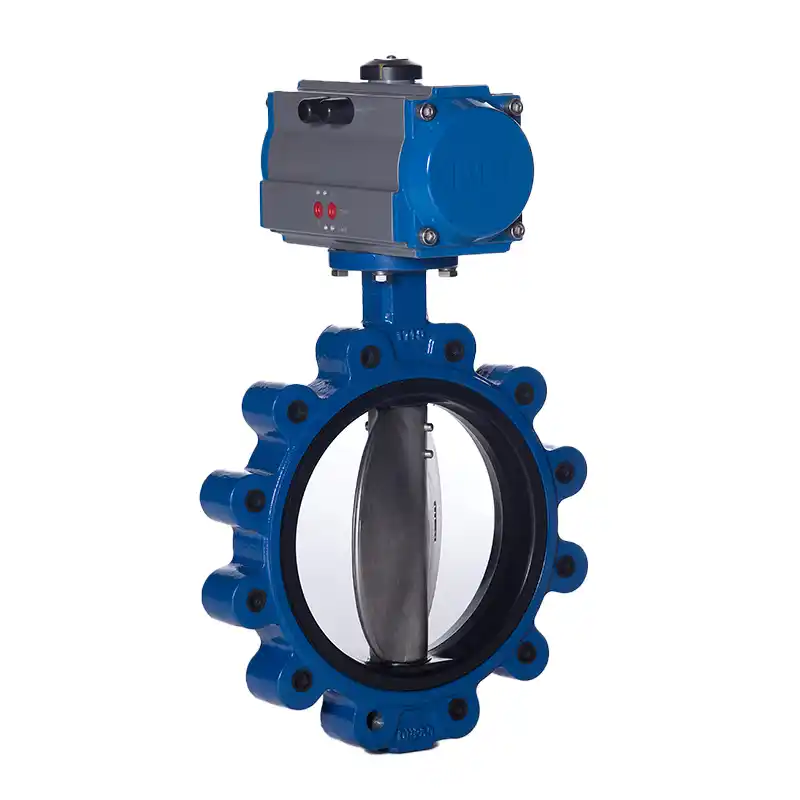

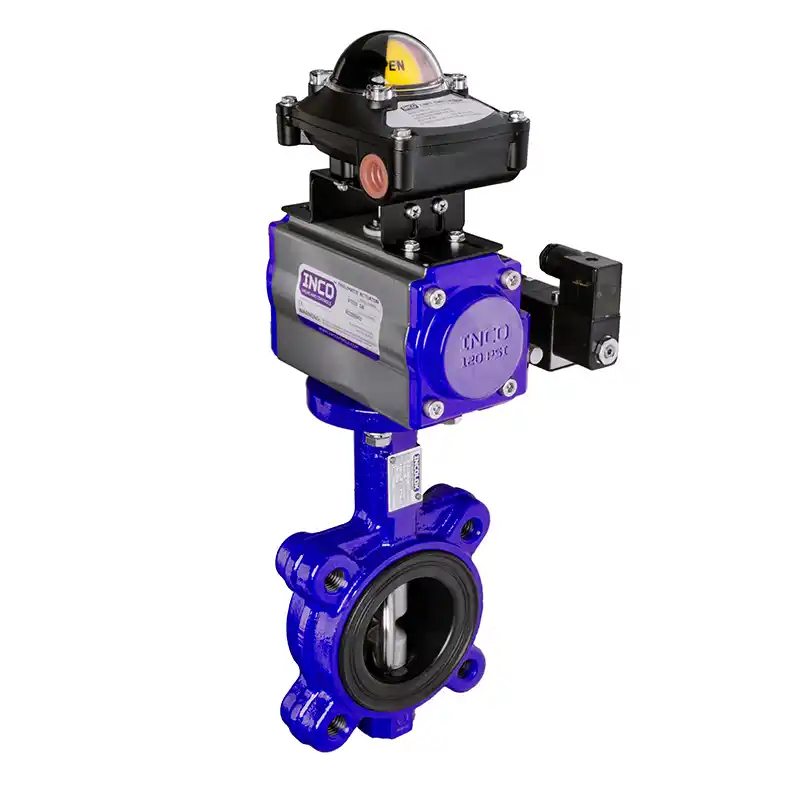

INCOLOK S116 Double Offset Butterfly Valves

INCOLOK® S116 Double Offset Butterfly Valves are resilient-seated valves designed for reliable bi-directional bubble-tight shutoff across a wide range of applications. Featuring a replaceable cartridge-style seat, S100 valves provide dependable performance in vacuum and dead-end service. Available in ductile iron, stainless steel, carbon steel and special alloy body materials.

Description

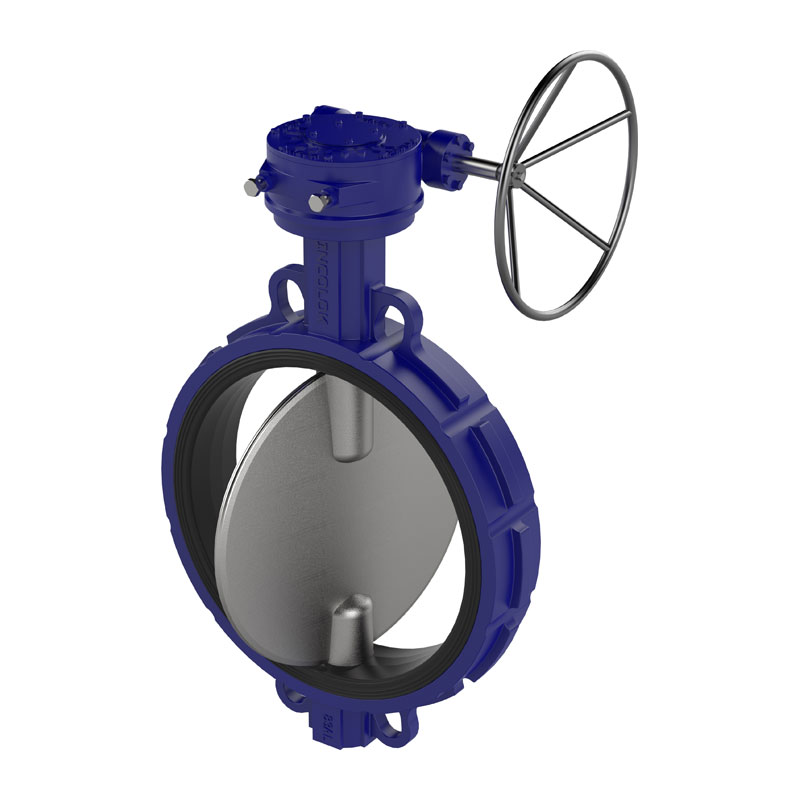

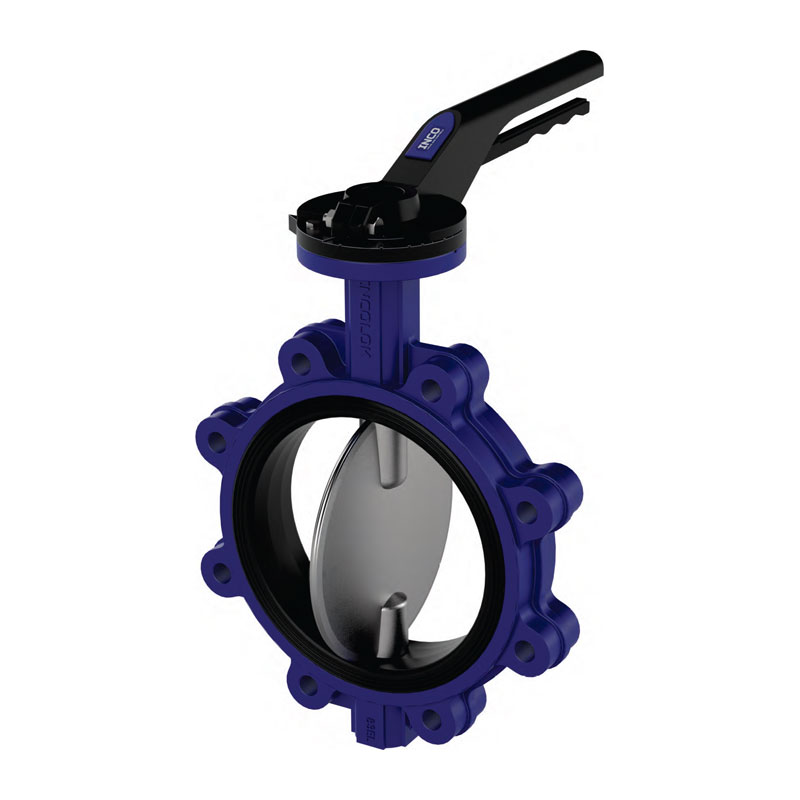

The IncoLok® S100 is a resilient seated concentric butterfly valve that is available in a wide range of trims to suit a wide range of applications. The cartridge-style seat offers superior performance in vacuum and dead end service, and is easy to replace.

Specifications

  • PRESSURE RATING: PN10- PN20
  • SIZE RANGE: DN40 – DN1800 (11/,11 – 70″)
  • BODY MATERIALS: DUCTILE IRON, STAINLESS STEEL, CARBON STEEL & SPECIAL ALLOY
  • SEAT MATERIALS: EPDM, BUNA-N, FKM, PTFE, SILICONE, NEOPRENE
  • SHUTOFF RATING: Bl-DIRECTIONAL BUBBLE TIGHT
  • MOUNTING PAD & STEM: ISO 5211
  • STANDARD LOCKABLE HAND LEVER
  • TEMPERATURE RANGE: -35°C TO 150°C
  • DESIGN: API 609; ASME B16.34
  • VALVE INSPECTION & TESTING: STANDARD: API 598
  • CERTIFICATIONS: CE/PED; API 609
