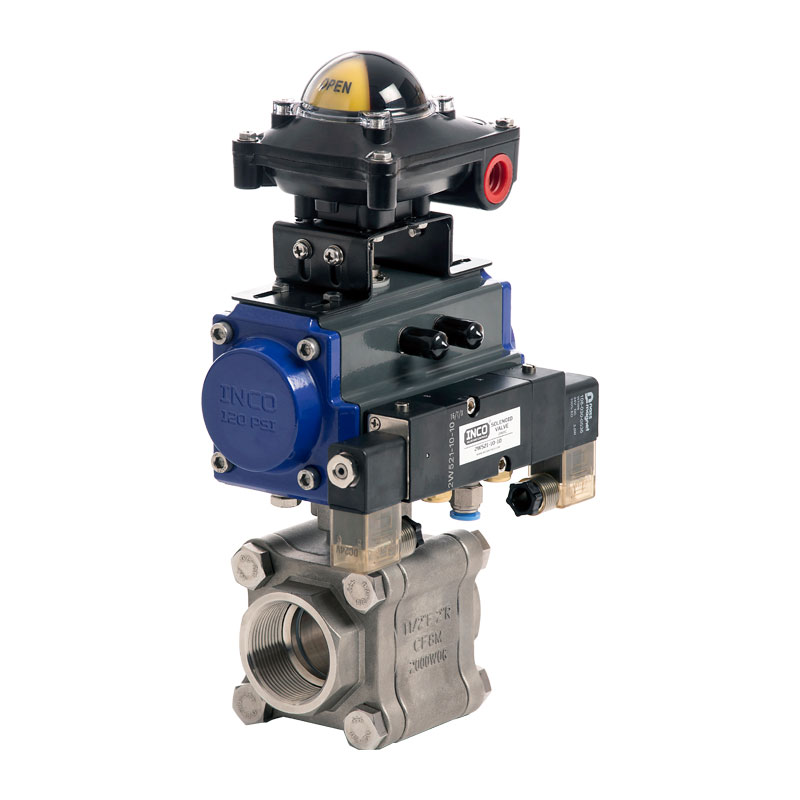

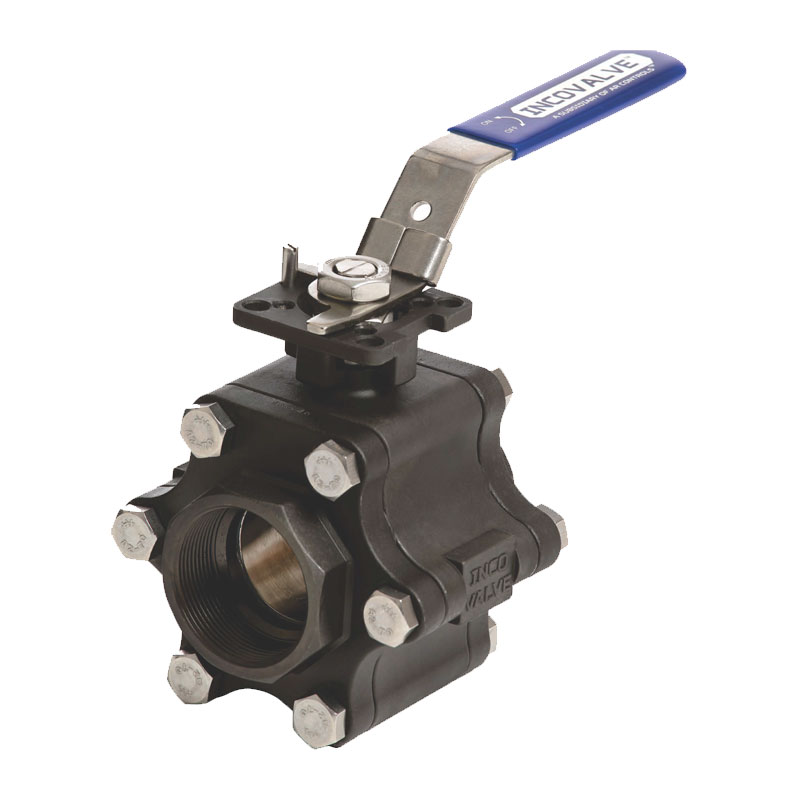

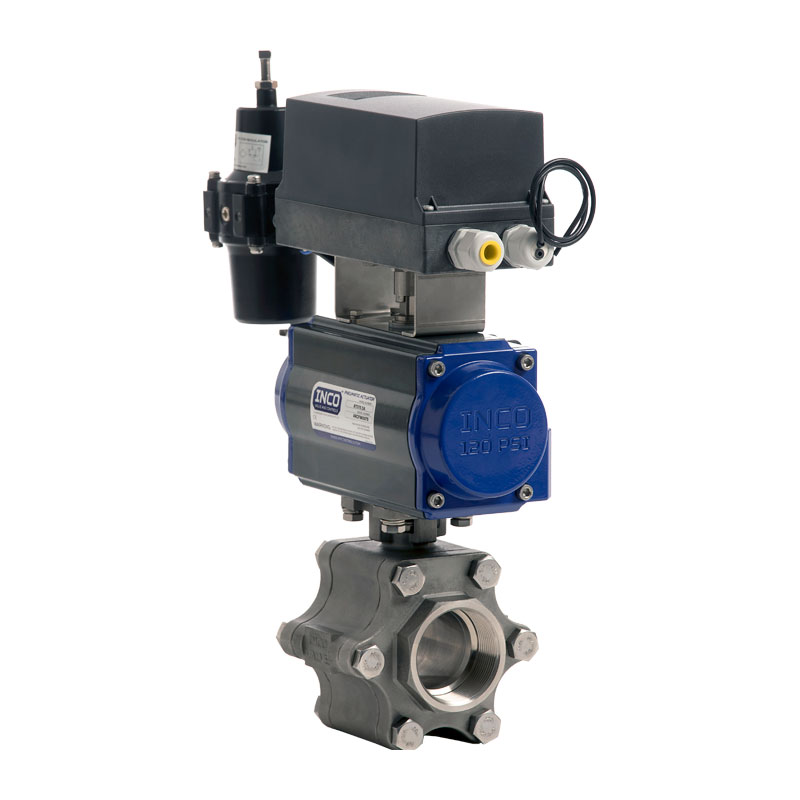

INCOVALVE Series 134 High Pressure Three-piece Ball Valve

INCOVALVE® S134 High Pressure Three-Piece Ball Valves are engineered for reliable isolation in demanding high-pressure applications, with pressure ratings up to 140 bar. Featuring a full-port design, blowout-proof stem, anti-static device and interchangeable seats, these robust valves are available in stainless and carbon steel with multiple end connection options.

Request a Quote

Description

The IncoValve® series 63 is a three piece full port floating ball valve that is available with a wide variety of interchangeable end connections and a wide selection of seat materials to suit a broad range of applications.

Specifications

  • PRESSURE RATING: DN8 – DN50: 140 bar; DN65 – DNlO0: 100 bar/ 1/4″ – 2″: 2000 psi; 2½” – 4″: 1500 psi
  • MOUNTING PAD: ISO 5211
  • DESIGN STANDARD: EN12516-3
  • BODY MATERIALS: STAINLESS STEEL & CARBON STEEL
  • STANDARD SEAT MATERIAL: TFM1600
  • BLOW-OUT PROOF STEM
  • ANTI-STATIC DEVICE
  • FULL PORT
  • INTERCHANGEABLE SEATS WITH RELIEF GROOVES
  • STANDARD LOCKABLE HAND LEVER
  • END CONNECTIONS: ISO 228 / DIN 259 / DIN 2999 (BSPT) IANSI Bl.20.1 (NPT) I SOCKET WELD END I BUTT WELD END I
  • OPTIONAL SEAT MATERIALS TO SUIT VARIOUS APPLICATIONS: PTFE I RPTFE (15% GLASS FIBRE REINFORCED) I PFA I PEEK I UHMWPE I 50/50 (316 55 + RPTFE) I METAL I 15% CARBON REINFORCED PTFE I TFM 1600 (MODIFIED PTFE) I 25% CARBON REINFORCED PTFE I 23% CARBON, 2% GRAPHITE REINFORCED TFM1600.
  • TEMPERATURE RANGE: 40 ·c @ 140 bar; 90 ·c@ 125 bar; 190 ·c@ 40 bar
