Description

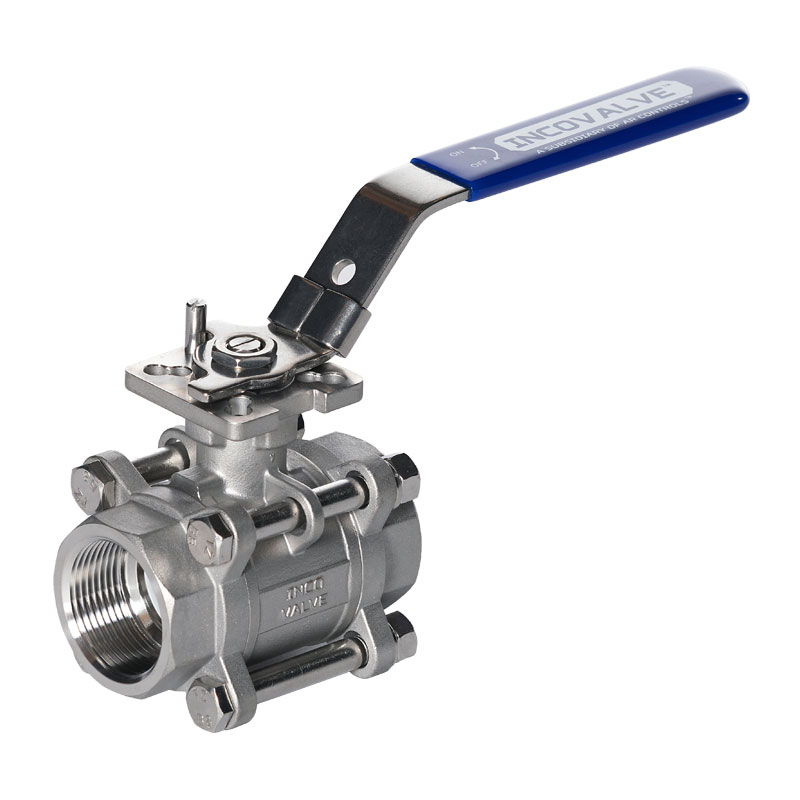

The IncoValve® series 63 is a three piece full port floating ball valve that is available with a wide variety of interchangeable end connections and a wide selection of seat materials to suit a broad range of applications.
INCOVALVE® Series 63 Full Port Three-Piece Ball Valves are designed for reliable isolation across demanding industrial applications. Their full-port floating ball provides unrestricted flow and minimal pressure loss, while interchangeable seats accommodate different media and operating conditions. Available in stainless steel and carbon steel, with threaded, socket weld and butt weld end connections.
The IncoValve® series 63 is a three piece full port floating ball valve that is available with a wide variety of interchangeable end connections and a wide selection of seat materials to suit a broad range of applications.
PRESSURE RATING: DN 8 – DN 50: 69 bar (1000 psi) ; DN 65 – DN 100: 55 bar (800 psi)

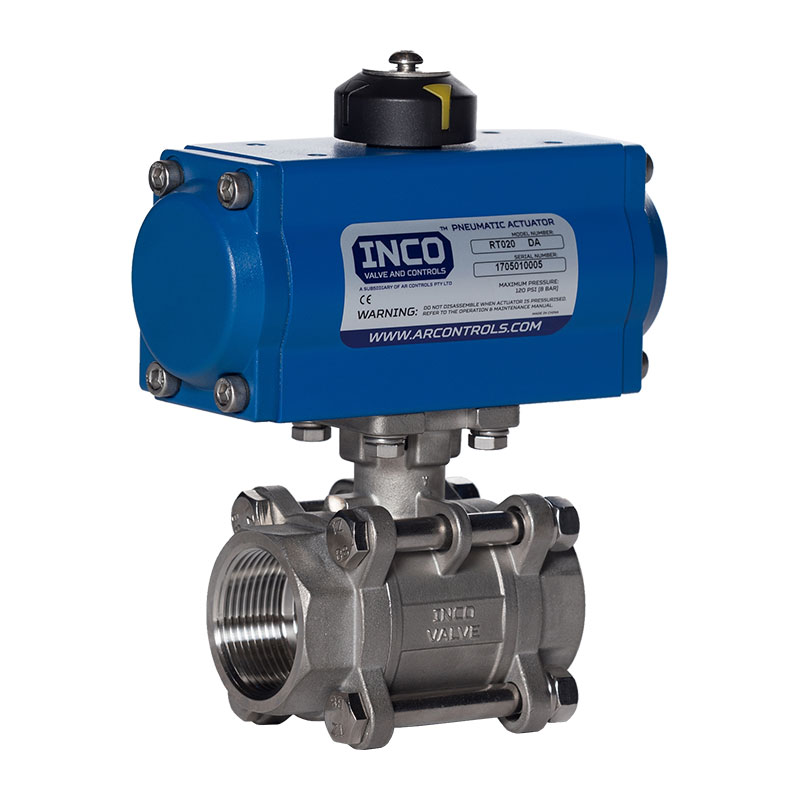

MOUNTING PAD: ISO 5211
BODY MATERIALS: stainless steel & carbon steel
STANDARD SEAT MATERIAL: RPTFE
TEMPERATURE RANGE: -20 TO 180°C
BLOW-OUT PROOF STEM
ANTI-STATIC DEVICE
FULL PORT
INTERCHANGEABLE SEATS WITH PRESSURE RELIEF GROOVES
STANDARD LOCKABLE HAND LEVER
END CONNECTIONS: ISO 228 / DIN 259 / DIN 2999 (BSPT) |ANSI B1.20.1 (NPT) | SOCKET WELD END | BUTT WELD END)
OPTIONAL SEAT MATERIALS TO SUIT VARIOUS APPLICATIONS: PTFE, RPTFE (15% GLASS FIBRE REINFORCED), PFA, PEEK, UHMWPE, 50/50 (316 SS + RPTFE), METAL, 15% CARBON REINFORCED PTFE, TFM 1600 (MODIFIED PTFE), 25% CARBON REINFORCED PTFE, MODIFIED TFM1600.
