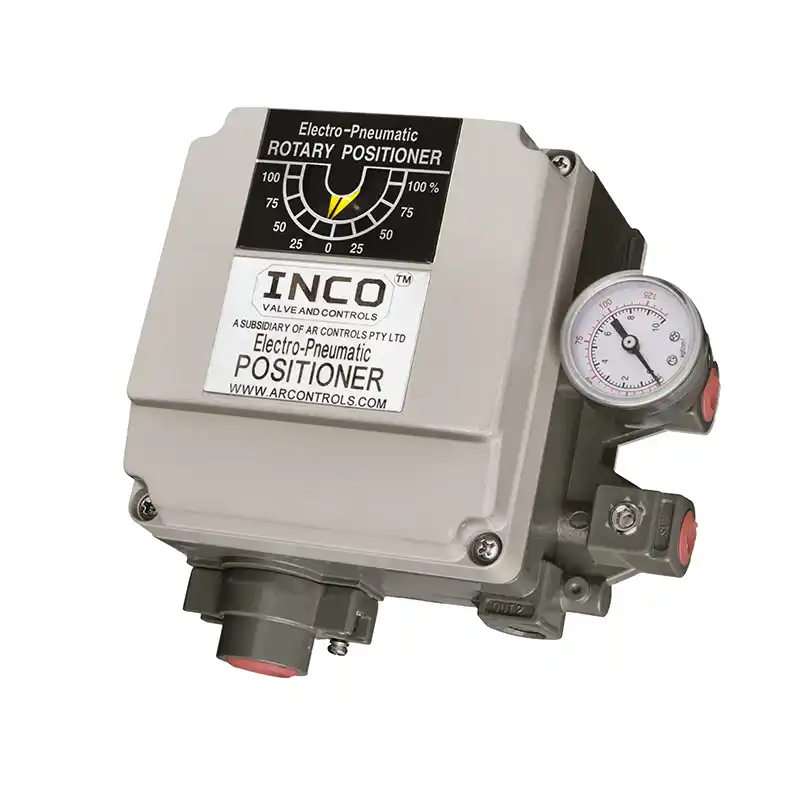

INCO YT-1000 Positioner

Name: INCO YT-1000 Positioner | AR Controls
Brand: INCO VALVE AND CONTROLS

INCO® YT-1000 Electro-Pneumatic Valve Positioners provide precise control of pneumatic rotary or linear valve actuators using 4–20 mA signals from electrical control systems. Simple zero and span adjustments, RA/DA action and split-range settings allow flexible configuration for demanding applications. Optional extras include feedback signal and explosion-proof configurations.

Description

The Electro-Pneumatic Positioner YT-1000L is used for operation of pneumatic linear valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split ranges.

• Simple zero and span adjustment
• RA v.s. DA action and 1/2 split range setting by simple adjustment
• Internal feedback signal is available as an option (weather proof only)
• No resonance between 5-200Hz
• Auto/Manual switch

Specification

Semi-auto drain. (Drains below 0.5kgf/)
Supplied standard with neck mounting bracket
Available from ¼” to 1”
Optional Anti-acid & Alkali bowl
Operating pressure range: 0.5 – 10 bar
Light weight design
